SMO-P58 70–2600MHz AGC Optical Receiver for FTTH

Key Features

● AGC

● Output 84~88dBuV ability

● Excellent flatness

● Low consumption

● Surge suppression design

● Input optical power monitoring LED

● 75Ω F-type connector

Product categories

Home Optical Receiver SMO-P58 is designed by SANLAND for FTTH application of CATV network. AGC function can keep stable output under −12 dBm to −2 dBm output.

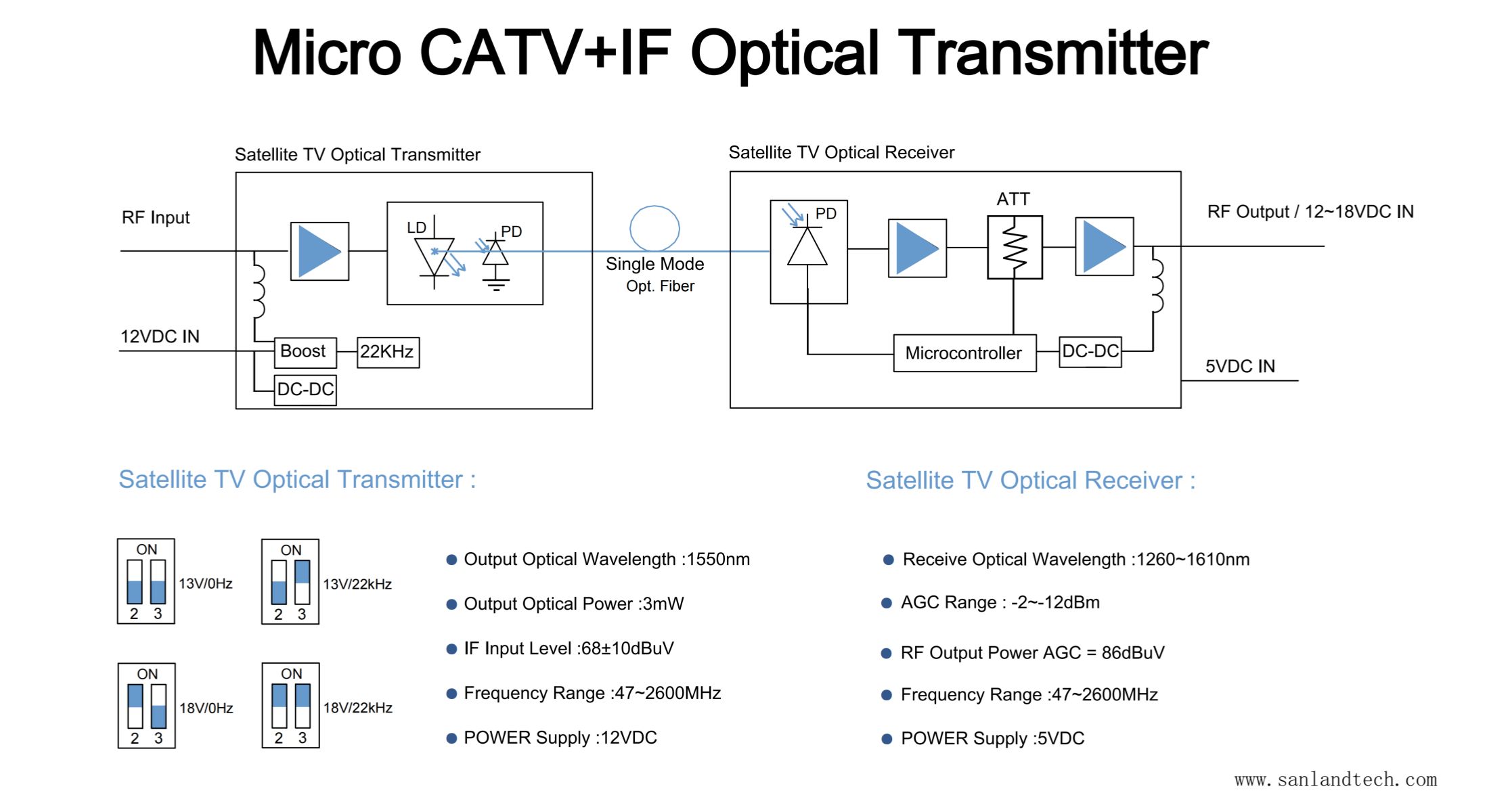

SANLAND/Micro CATV+IF Optical Transmitter

Parameter	Specification
Optical Wavelength	1100–1600 nm (typical 1550 nm)
Optical Input Range	−16 to 0 dBm
AGC Operating Range	−12 to −2 dBm
RF Output Level (AGC)	84–88 dBµV (OMI = 4%/channel)
Frequency Range	70–2600 MHz
Flatness	±2 dB
Output Return Loss	≥ 8 dB
CNR (Carrier-to-Noise Ratio)	≥ 40 dB
CTB / CSO	≤ −55 dB
MER	≥ 32 dB
BER	≤ 1 × 10⁻⁹
Power Supply	+5 V DC
Current Consumption	240–280 mA (max. 2 W)
Operating Temperature	−20 °C to +60 °C
Humidity	20–90% (non-condensing)
ESD Protection (contact discharge)	2 kV

Fiber-to-the-Home (FTTH) CATV distribution
Triple-play services: TV, broadband, satellite IF
Small community or building-wide fiber access networks
