Micro CATV + SAT-IF Fiber Optic Transmitter, 47–2400 MHz | SLRF TXS-55

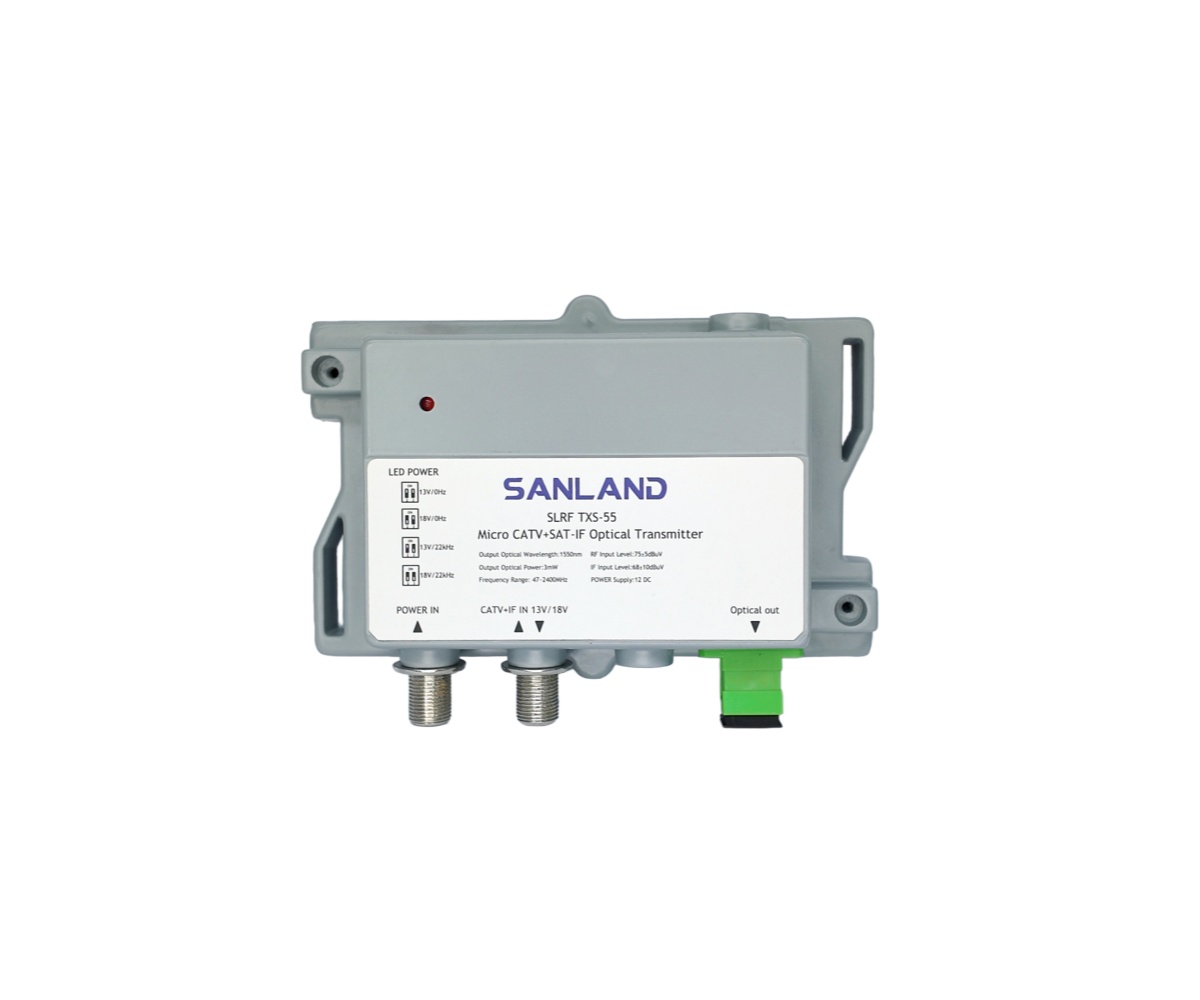

The TXS-55 is a compact CATV and SAT-IF fiber optic transmitter designed to carry broadband RF signals over single-mode fiber. It supports a frequency range from 47 MHz to 2400 MHz, making it suitable for combined cable television and satellite intermediate-frequency distribution.

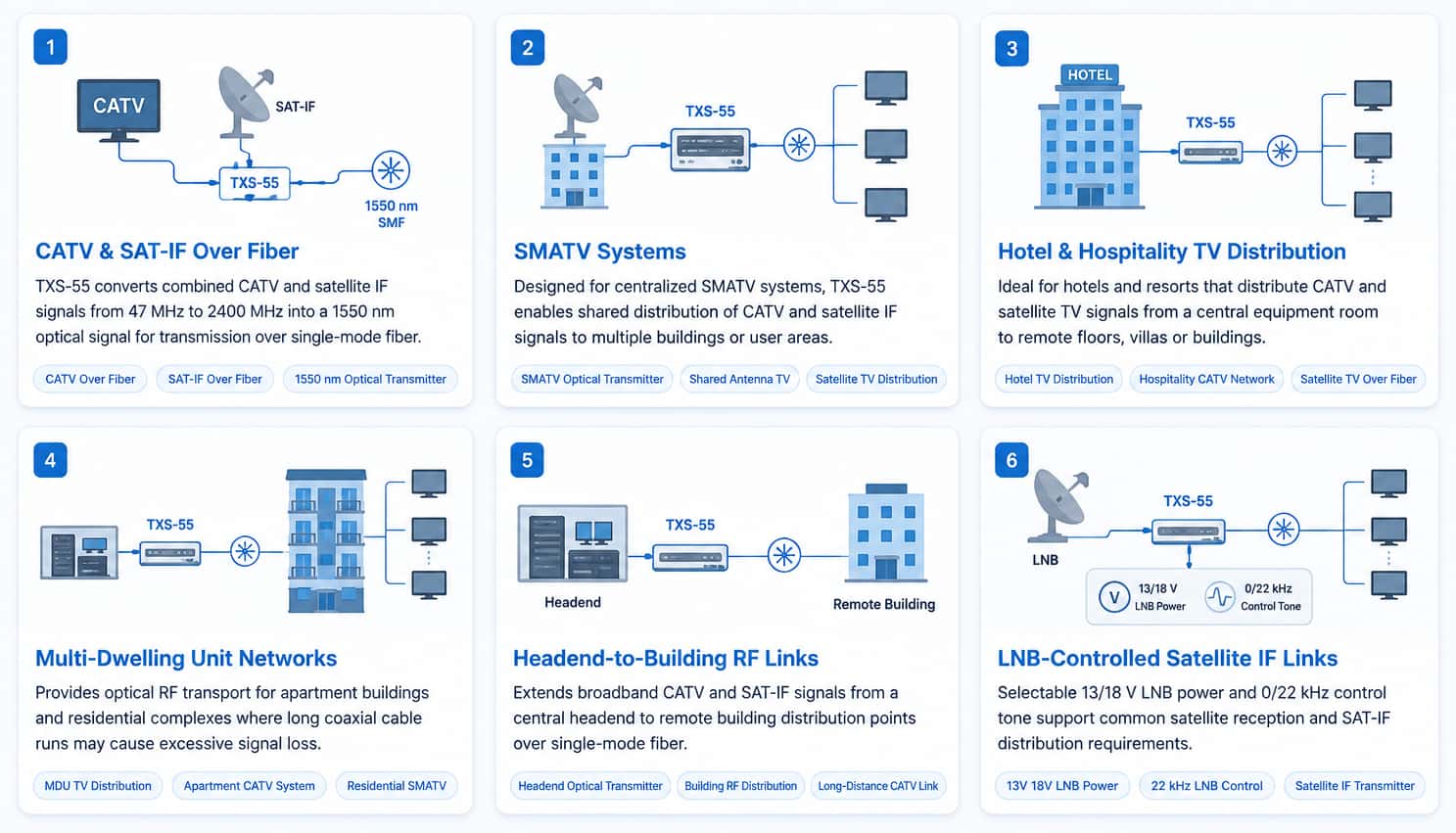

The transmitter provides a 1550 nm optical output with 3 mW optical power. Selectable 13/18 V DC and 0/22 kHz control are available through the RF input port, with a maximum current of 500 mA for satellite LNB applications. Its compact housing, low-noise design and stable RF performance make it suitable for SMATV, headend, hospitality and multi-dwelling distribution systems.

Selectable LNB Power and Control

TXS-55 provides four selectable LNB control modes through two onboard switches, allowing the required voltage and tone combination to be configured for different satellite reception conditions.

• 13V / 0kHz
• 13V / 22kHz
• 18V / 0kHz
• 18V / 22kHz

Frequently Asked Questions

• What frequency range does the TXS-55 support?

The TXS-55 supports CATV and SAT-IF signals from 47 MHz to 2400 MHz.

• Can the TXS-55 transmit CATV and SAT-IF signals over the same fiber?

The transmitter accepts combined broadband CATV and SAT-IF RF signals and converts them into a 1550 nm optical output for single-mode fiber transmission.

• Does the TXS-55 support 13 V and 18 V LNB power?

Yes. The RF input port supports selectable 13 V or 18 V output with a maximum current of 500 mA.

• Does it provide 22 kHz satellite control?

Yes. The transmitter supports selectable 0 kHz or 22 kHz control tone.

• What is the optical output power?

The typical optical output power is 3 mW at 1550 nm.

• Which optical connectors are available?

SC/APC and FC/APC optical connector options are available.

• What receiver should be used with the TXS-55?

A compatible optical receiver should be selected according to the required frequency range, optical input level, RF output and AGC performance. Customers should contact SANLAND for receiver matching.
