Key Features
| ● 5 MHz to 1800 MHz Operation |
| ● 5V & 7V Operation |
| ● Gain: 21 dB Typical |
| ● Noise Figure: 1.6 dB @ 1800 MHz |
| ● OIP3: 39 dBm Typical @ 7V |
| ● OP1dB: 23 dBm Typical @ 7V |
| ● Upstream Applications: 5 MHz to 684 MHz |
| ● Downstream Applications: 47 MHz to 1800 MHz |
| ● 3 × 3 QFN Package |
| ● RoHS Compliant |

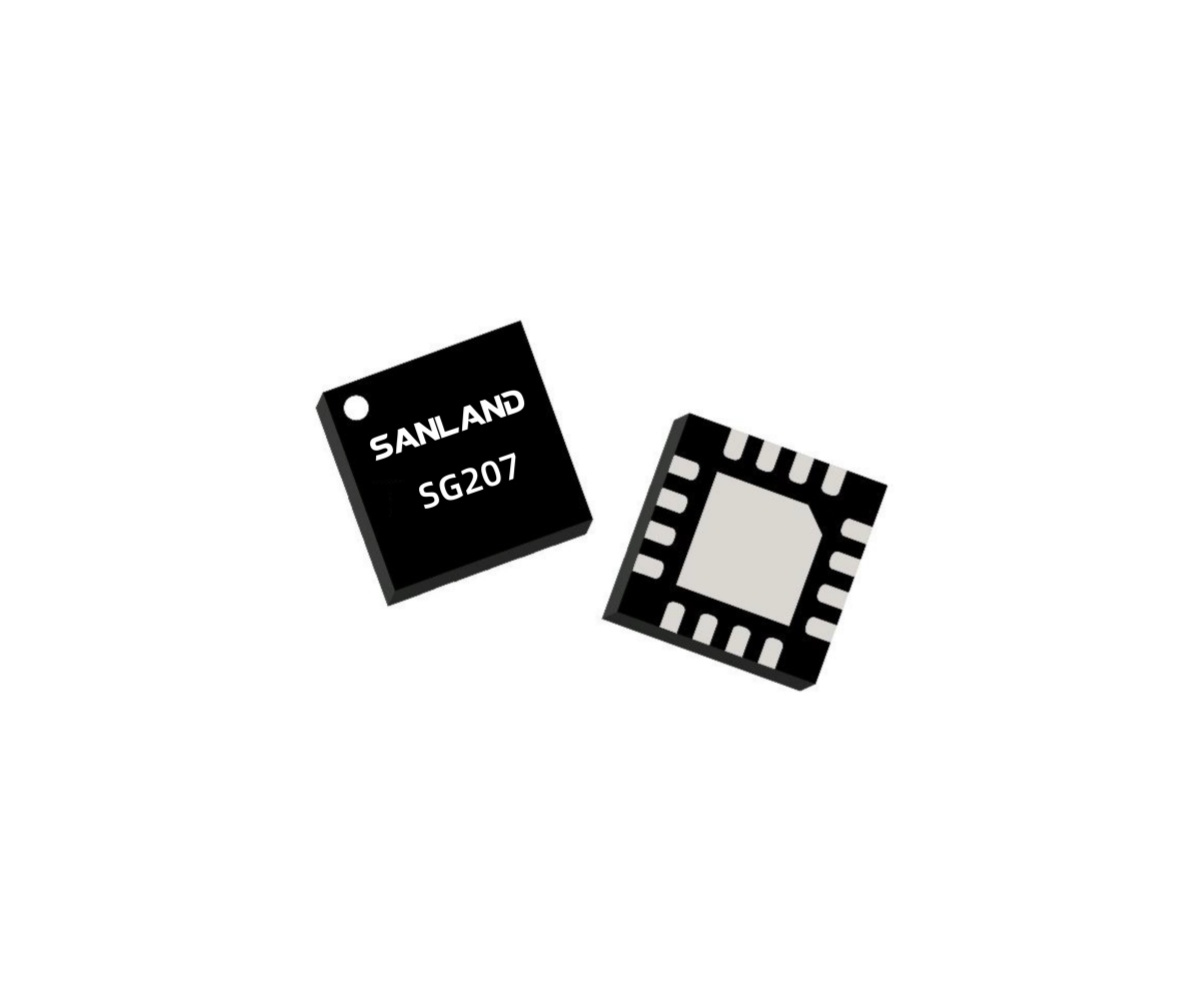

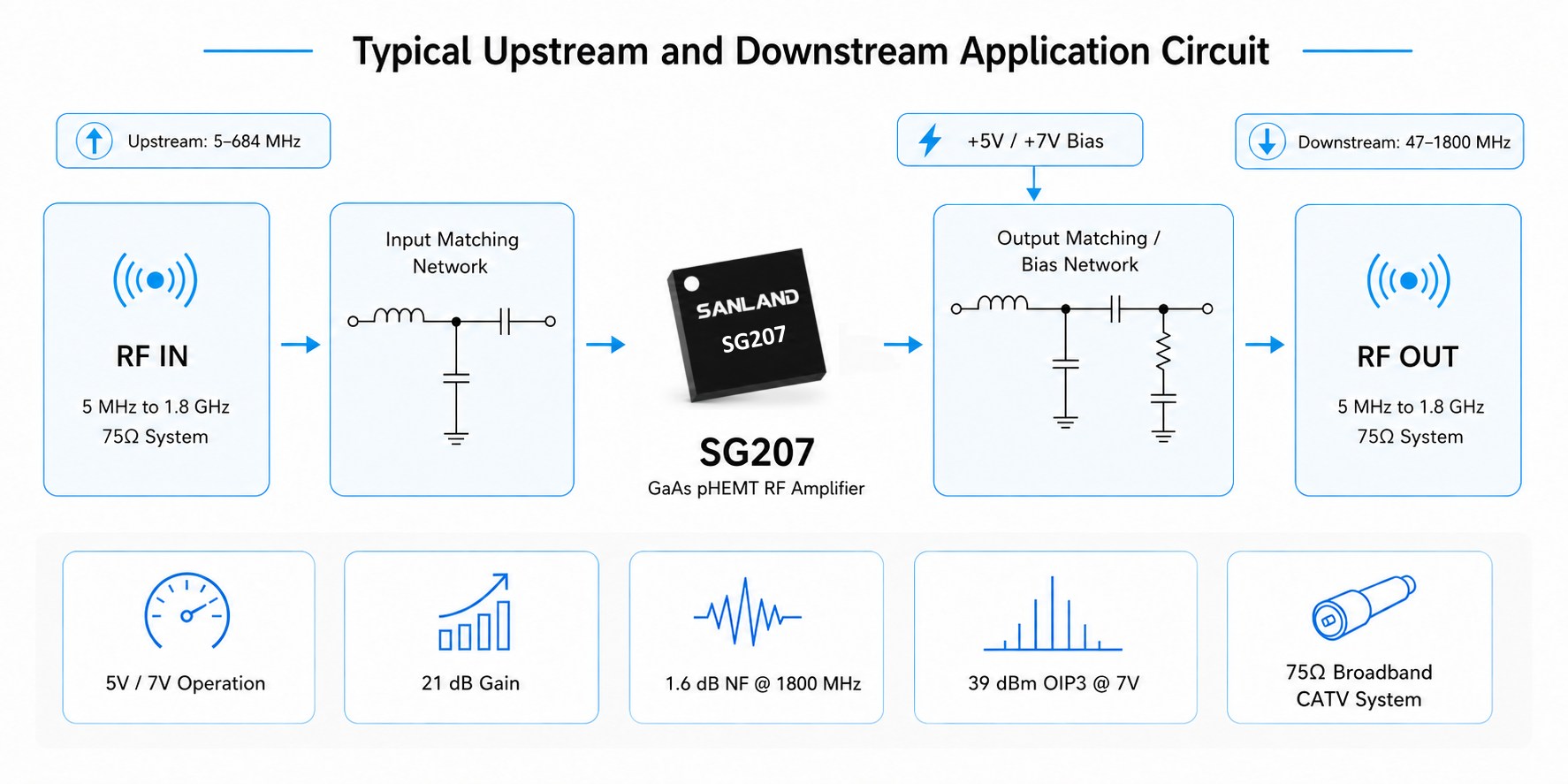

Sanland’s SG207 is a GaAs pHEMT single-ended MMIC RF amplifier IC designed for DOCSIS 3.1 and DOCSIS 4.0 upstream and downstream applications. The device supports upstream operation from 5 MHz to 684 MHz and downstream operation from 47 MHz to 1800 MHz, providing 21 dB typical gain, low noise figure, and high linearity in a compact 3 × 3 QFN package. Powered by a single 5V or 7V supply, SG207 is suitable for optical nodes, head-end CMTS equipment, FTTH GPON / GEPON, cable modems, home gateways, and single-ended gain block applications.
| Parameter | +5V Typical | +7V Typical |
| Frequency | 47–1800 MHz | 47–1800 MHz |
| Supply Current | 71 mA | 101 mA |
| Gain | 21 dB | 21.4 dB |
| Gain Slope | 1 dB | 1 dB |
| Reverse Isolation | 25 dB | 25 dB |
| Input Return Loss | 18 dB | 20 dB |
| Output Return Loss | 20 dB | 20 dB |
| Noise Figure | 1.0 / 1.6 dB | 1.0 / 1.6 dB |
| OIP3 | 36 dBm | 39 dBm |
| OP1dB | 20 dBm | 23 dBm |
| Thermal Resistance | 57 ℃/W | 57 ℃/W |
| Parameter | +5V Typical | +7V Typical |
| Frequency | 5–700 MHz | 5–700 MHz |
| Supply Current | 70 mA | 100 mA |
| Gain | 21 dB | 21.3 dB |
| Gain Slope | 0.2 dB | 0.2 dB |
| Reverse Isolation | 23 dB | 23 dB |
| Input Return Loss | 21 dB | 22 dB |
| Output Return Loss | 20 dB | 19 dB |
| Noise Figure | 0.9 / 1.0 dB | 0.9 / 1.2 dB |
| OIP3 | 35 dBm | 40 dBm |
| OP1dB | 20 dBm | 23 dBm |
| Thermal Resistance | 57 ℃/W | 57 ℃/W |

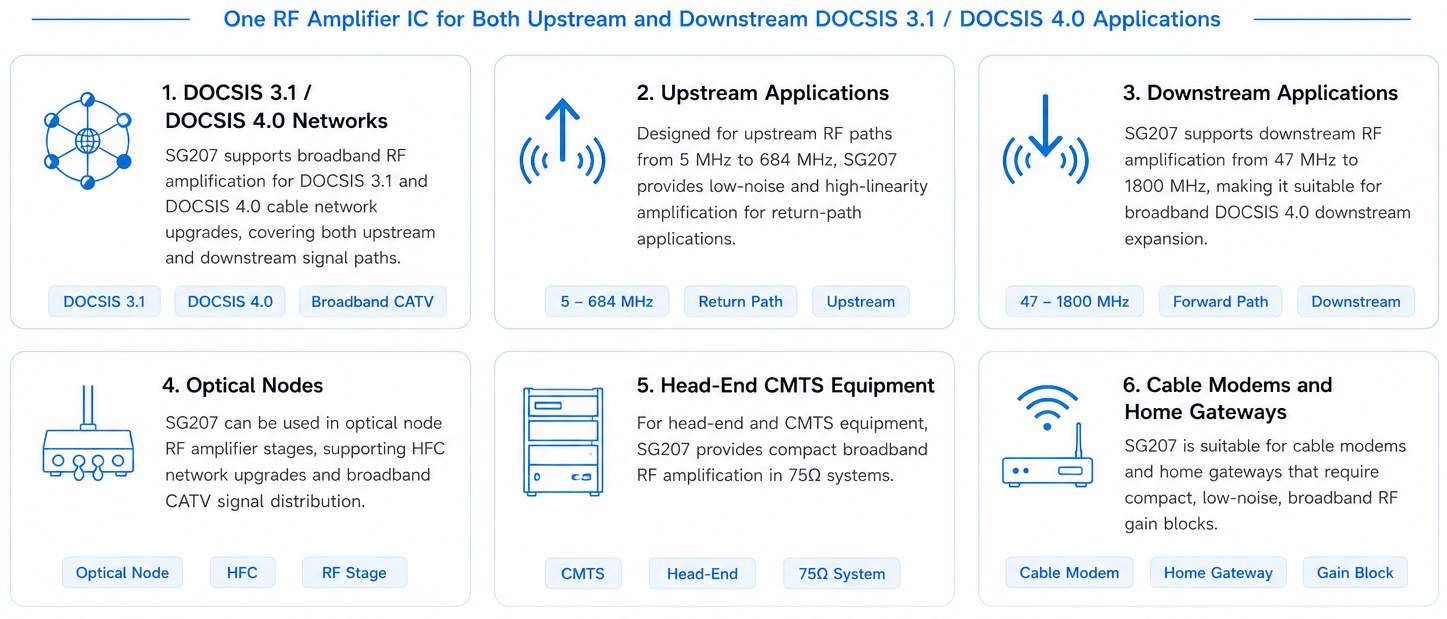

SG207 supports DOCSIS upstream and downstream broadband RF applications for cable network infrastructure and user equipment.
