Key Features
| ● Excellent Linearity |
| ● Superior Return Loss Performance |
| ● Extremely Low Distortion |
| ● Optimal Reliability |
| ● Low noise figure |
| ● Unconditionally Stable Under All Terminations |
| ● Low cost |
| ● Power gain @25dB |
| ● 160mA Max at 24VDC |

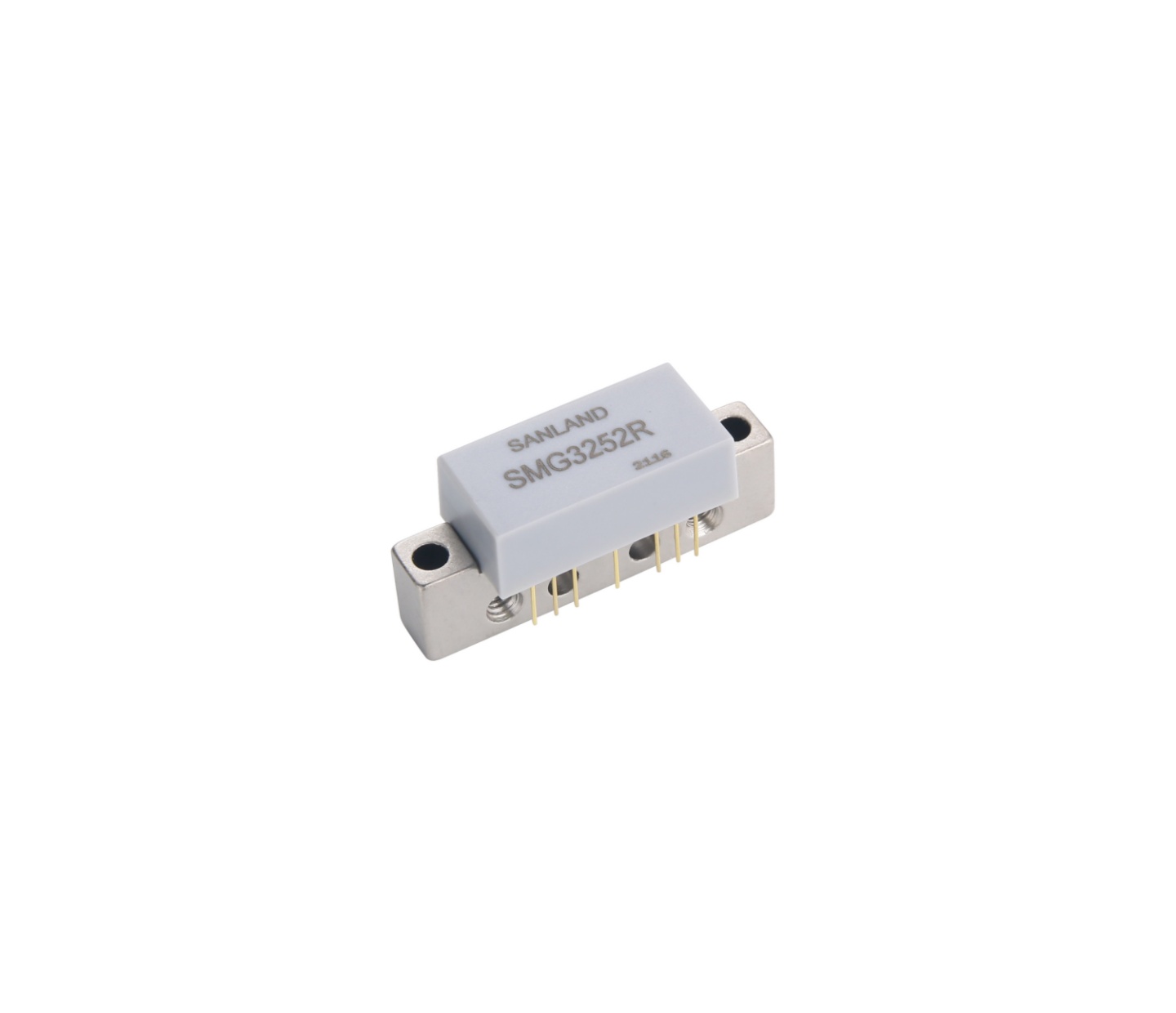

The SMG3252R is a hybrid reverse amplifier module engineered for broadband return-path applications. Operating across 5 to 300 MHz with a +24 V DC supply, it delivers excellent linearity, low distortion, and reliable long-term performance. The module integrates high-quality Si dies and is optimized for unconditionally stable operation under all termination conditions.
| Type | Downstream |
| Frequency Min(MHz) | 5 |
| Frequency Max(MHz) | 300 |
| Input return loss(dB)S11 | -20 |
| Output return loss(dB)S22 |
-20 |
| Slope(dB) | –0.2 to +0.5 |
| Gain (dB) | 25 |
| CTB (dBc) | -66 |
| Xmod(dBc) | -55 |
| CSO (dBc) | -65 |
| NF(dB) | 4.3 |
| Flatness(dB) | ±0.5 |
| Voltage(V) | 24 |
| Current(mA) | 130-160 |
| Rohs | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
