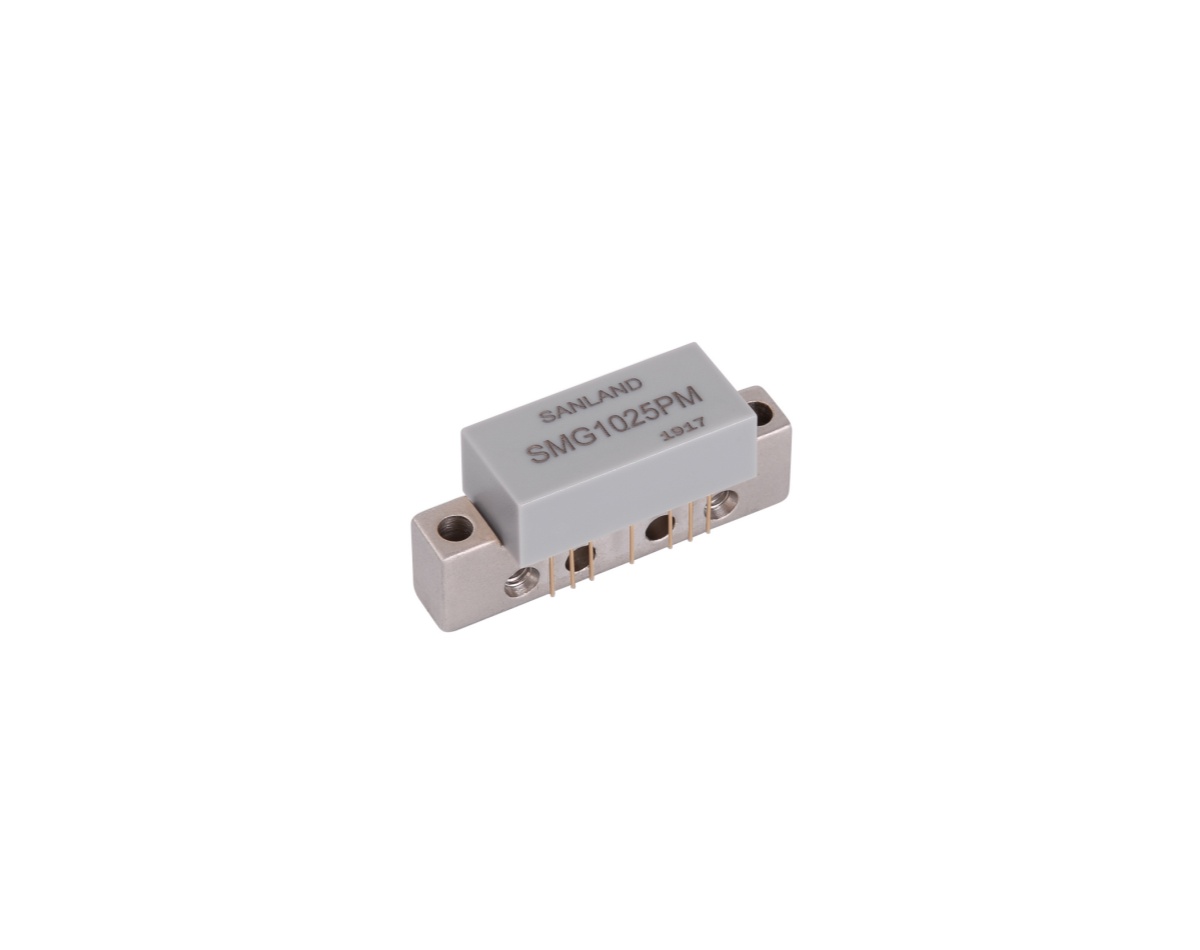

SMG1025PM/GaAs hybrid amplifier module

SMG1025PM/GaAs hybrid amplifier module

SMG1025PM/GaAs hybrid amplifier module

Key Features

●  GaAs active devices
●  Power gain @25dB
●  Low distortion
●  Excellent linear gain
●  Low noise figure
●  High reliability

●  Low cost

SMG1025PM/GaAs hybrid amplifier module

The SMG1025PM is a GaAs hybrid push-pull amplifier module. The part employs GaAs dies and is operated from 50MHz to 1003MHz with supply voltage +24V( DC).

Type Downstream
Frequency Min(MHz) 50
Frequency Max(MHz) 1003
Input return loss(dB)S11
 -16
Output return loss(dB)S22
 -16
Slope(dB) 1.0~2.5
Gain (dB) 25
CTB (dBc)  -69
Xmod(dBc)  -61
 CSO (dBc)  -68
NF(dB)  5.0
Flatness(dB)  ±0.5
 Voltage(V)  24
 Current(mA) 270-330
Rohs Yes
Lead Free Yes
Halogen Free Yes or No
