Key Features
| ● The Optical Input controlled in the range of -8dBm to +2dBm |
| ● Single +5V Supply |
| ● Extremely low noise |
| ● Bandwidth 1000MHz |
| ● Monitor the temperature of high precision |
| ● Can control the RF signal closing and opening |
| ● FC/APC/PC or SC/APC/PC |

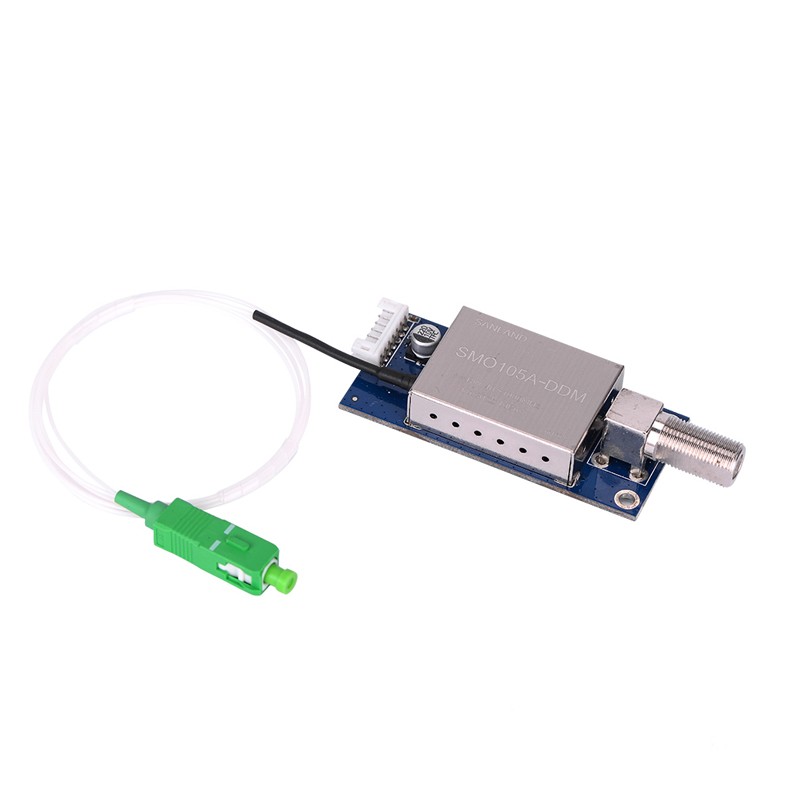

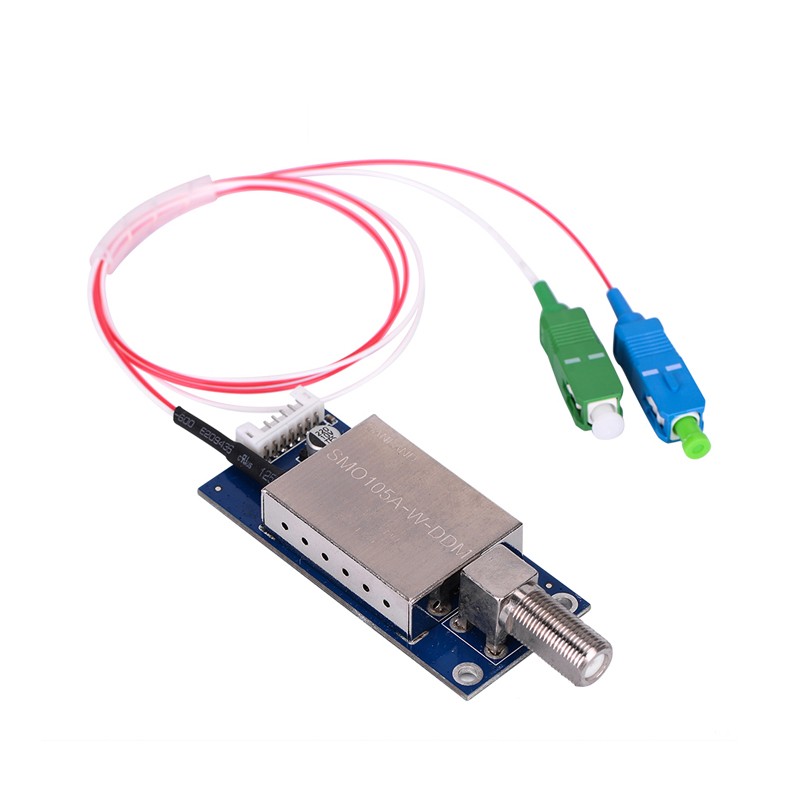

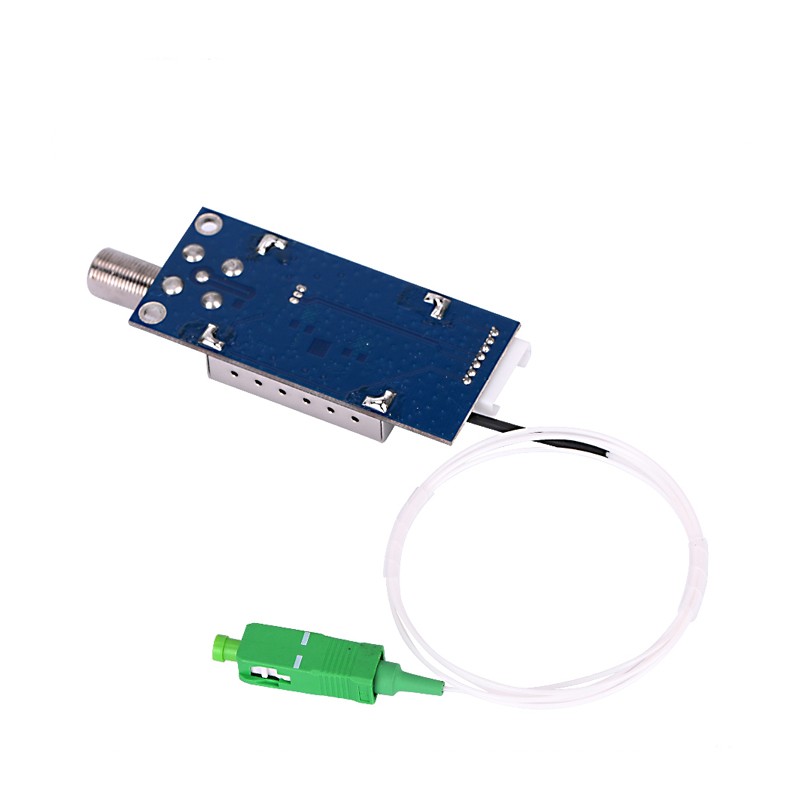

The SMO175A-W-DDM has an FC/APC/PC or SC/APC/PC Connector. The amplifier supply voltage pin connects to 5V (DC). The modules have a monomode optical input suitable for 1310&1490 to 1550&1610nm wavelengths a terminal to monitor the photo diode current and an electrical output having a characteristic impedance of 75Ω.
| Type | Downstream |
| Bandwidth (MHz) | 40-1000 |
| Output Return Loss (S22) | -12dB |
| Input Return Loss(S11) | >45dB |
| Output Voltage (dBuV) | 80 |
| CSO (dBc) | -61 |
| CTB (dBc) | -62 |
| CNR (dB) | 50 |
| Voltage (V) | 5 |
| Current (mA) | 230-280 |
| Flatness (dB) | ±0.75 |
| RoHS | Yes |
| Lead Free | Yes |
| Halogen Free | Yes or No |
