Key Features
| ● 20dB nominal link gain |
| ● 5MHz to 6GHz wide frequency range |
| ● Plug-and-play operation |
| ● 104dB·Hz²/³ SFDR |
| ● 1310nm or 1550nm wavelength options |
| ● Compact 50Ω TX/RX modules |
SANLAND 6G-TX and 6G-RX modules provide a compact analog RF over fiber solution for transporting RF signals from 5MHz to 6GHz over single-mode fiber. The link features 20dB nominal gain, 104dB·Hz²/³ SFDR and plug-and-play operation for remote antenna, Satcom, DAS and broadcast applications.

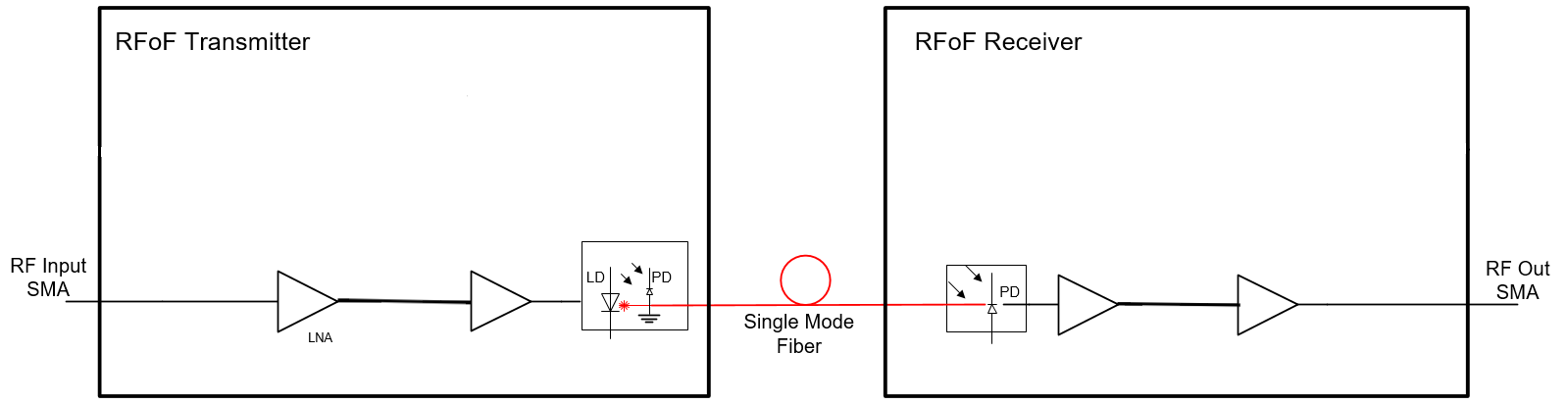

The 6G-TX receives the analog RF signal through the 50Ω SMA input and converts it into an optical signal.
The optical signal is transported through customer-installed single-mode fiber to the remote location.
The 6G-RX converts the optical signal back into RF and delivers it through the 50Ω SMA output.
*One 6G-TX and one 6G-RX form a complete unidirectional, plug-and-play RF over fiber link.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System
|
SYMBOL |
PARAMETER |
MIN. |
MAX. |
UNITS |
|
Ts |
Storage temperature |
-40 |
+85 |
℃ |
|
To |
Operating temperature |
-20 |
+75 |
℃ |
|
RHs |
Relative Humitity-storage |
5 |
95 |
% |
CHARACTERISTICS
(Bandwidth 5 to 6000MHZ ; Tmb ＝25℃, VB ＝5V, ZS ＝ZL ＝50Ω)
|
Electrical |
UNIT |
Specification |
|
Frequency Range |
MHz |
5-6000 |
|
Gain (nominal value) |
dB |
20 |
|
Gain Flatness |
dB |
±2.5 |
|
Input P1 dB |
dBm |
-18 |
|
Noise Figure |
dB |
16 |
|
SFDR |
dB/Hz2/3 |
104 |
|
Gain Flatness any 36 MHz |
dB |
±0.25 |
|
Maximum Input No damage |
dBm |
20 |
|
VSWR Input / Output |
dBm |
2.6:1 |
|
Input / Output impedance |
Ohm |
50 |
|
Current consumption of Tx unit (at 12VDC) |
mA |
100 |
|
Current consumption of Rx unit (at 12VDC) |
mA |
100 |
|
Power LED status indicators (Tx/Rx) |
- |
G |
|
Optical Power in the fiber |
mW |
3 ±0.5 |
|
Dimensions (L*W*H) |
MM |
70x 83.5 x 23 |
|
Transmitter wavelength typical |
nm |
1310 or 1550 are available options |
|
Product family FO connector |
- |
FC/APC |
