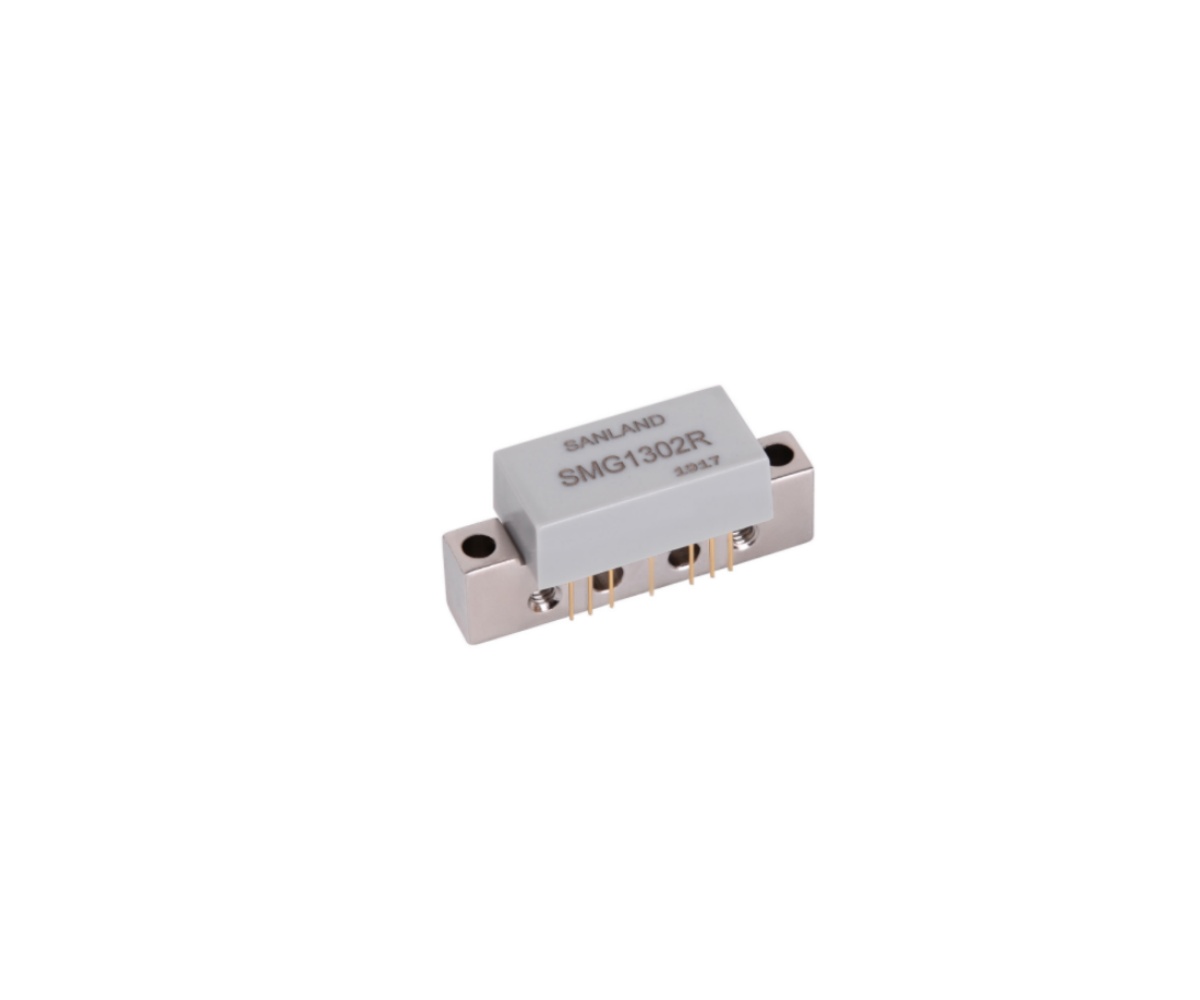

SMG1302R/CATV Low Noise Reverse Amplifier Module

hybrid reverse amplifier module

SMG1302R/CATV Low Noise Reverse Amplifier Module

Key Features

●  Si active devices
●  Power gain @30dB
●  Low distortion
●  Excellent linear gain
●  Low noise figure
● High reliability
● Low cost

SMG1302R/CATV Low Noise Reverse Amplifier Module

The SMG1302R is a hybrid reverse amplifier module. The part employs Si dies and is operated from 5MHz to 120MHz with supply voltage +24V( DC).

Type Downstream
Frequency Min(MHz)  5
Frequency Max(MHz) 120
Input return loss(dB)S11  -20
Output return loss(dB)S22
 -20
Slope(dB) ±0.5
Gain (dB) 30
CTB (dBc) -66
Xmod(dBc) -60
 CSO (dBc) -65
NF(dB)  4.3
Flatness(dB) ±0.5
 Voltage(V) 24
 Current(mA) 130-160
Rohs  Yes
Lead Free  Yes
Halogen Free  Yes or No
